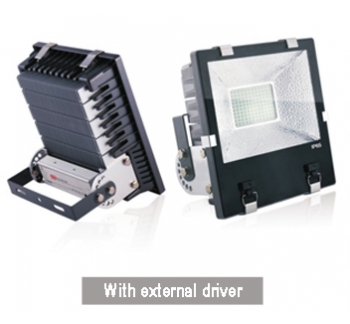

Fin-sheet heat sink+heat pipe
watt: 10w, 20w, 30w, 50w, 70w, 80w, 100w, 120w,150w, 200w
Driver: default driver, meanwell or philips driver
3year warranty, 95-100lm/w
|
Item |
Power |
Voltage |
PF |
Lumen |
|||||
|
MEANWELL |
PHILIPS |
DEFAULT |
3000k |
4000k |
5000k |
6500k |
|||
|
PL-FWL10W-TG |
10W |
- |
- |
85-265V |
>0.9 |
828lm |
902lm |
920lm |
950lm |
|
PL-FWL20W-TG |
20W |
- |
- |
85-265V |
>0.9 |
1710lm |
1805lm |
1845lm |
1900lm |
|
PL-FWL30W-TG |
30W |
- |
- |
85-265V |
>0.9 |
2565lm |
2710lm |
2765lm |
2850lm |
|
PL-FWL50W-TG |
50W |
- |
- |
85-265V |
>0.9 |
4275lm |
4515lm |
4610lm |
4750lm |
|
PL-FWL70W-TG |
70W |
- |
- |
85-265V |
>0.9 |
5760lm |
6270lm |
6400lm |
6600lm |
|
PL-FWL80W-TG |
80W |
- |
- |
85-265V |
>0.9 |
6840lm |
7220lm |
7370lm |
7600lm |
|
PL-FWL100W-TG |
100W |
90-305V |
220-240V |
85-265V |
>0.9 |
8280lm |
9020lm |
9215lm |
9500lm |
|
PL-FWL120W-TG |
120W |
90-305V |
220-240V |
85-265V |
>0.9 |
10260lm |
10830lm |
11060lm |
11400lm |
|
PL-FWL150W-TG |
150W |
90-305V |
220-240V |
85-265V |
>0.9 |
12825lm |
13540lm |
13820lm |
14250lm |
|
PL-FWL200W-TG |
200W |
90-305V |
220-240V |
85-265V |
>0.9 |
17100lm |
18050lm |
18430lm |
19000lm |
|
Item |
Packing |
Carton size (mm) |
Gross Weight |
|
10W LED flood light |
24pcs per carton |
430*440*820 |
23.0kg |
|
20W LED flood light |
16pcs per carton |
535*465*510 |
22.0kg |
|
30W LED flood light |
12pcs per carton |
530*490*390 |
22.5kg |
|
50W LED flood light |
8pcs per carton |
640*550*300 |
22.0kg |
|
70W LED flood light |
4pcs per carton |
705*395*385 |
17.2kg |
|
80W LED flood light |
4pcs per carton |
705*395*385 |
17.2kg |
|
100W LED flood light |
4pcs per carton |
735*420*555 |
27.5kg |
|
120W LED flood light |
2pcs per carton |
435*430*600 |
17kg |
|
150W LED flood light |
2pcs per carton |
480*430*605 |
20.5kg |
|
200W LED flood light |
2pcs per carton |
495*450*575 |
27.8kg |
