Led Linear Light
Name：3 wires shadowless connection led linear light
Model：LS6870-RAIL-24W/40W/60W
Category：Led Linear Light
Product Features：
Led linear light
* High efficiency 130lm/w, Ra>80
* Voltage: Ac180~240V
* 30D,60D,90D,LR25 beam angle are available
* 0.6M 24W, 1.2M 40W, 1.5M 40W/60W
* 3 wires shadowless connection
Description

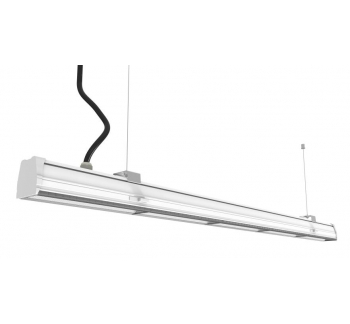

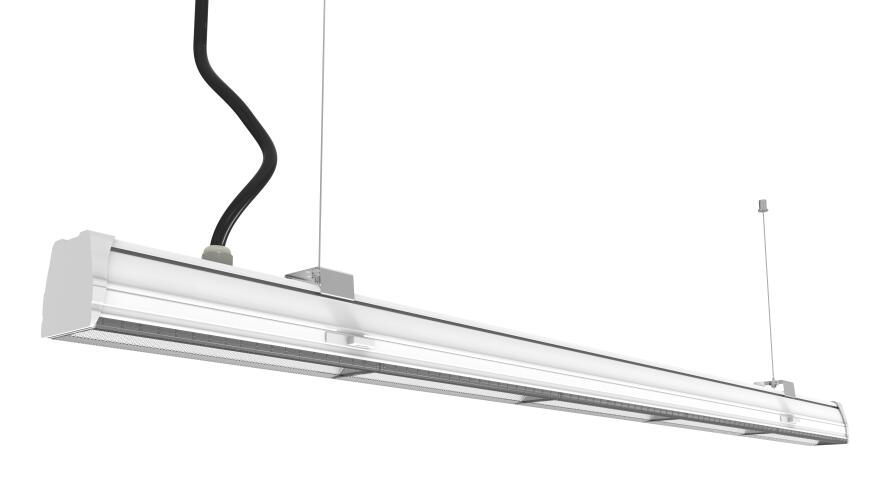

3 wires shadowless connection led linear light

Features:
*60seconds quick installation without any tools
*Low installation cost-everything in one box and installation is tool-less
*3-phase circuit preset in the trunking rail, individually control the lamp as you wish
*2 dimming version: 1~10V&DALI
*Emergency mode: Generator/Central battery system
*Sensor mode: microwave sensor& daylight sensor
*X,L and T standard module node connectors
*Mounting options: chain or cord, surface mounted
*A wide range of optics from 30D to 120D distribution, as well as double asymmetric distribution

Parameter:
MODEL NUMBER POWER Input Voltage LIGHT DISTRIBUTION  Dimension LUMEN  CRI  COLOR
TEMPERATURE		 Dimming  Rails Description
LS6870-RAIL-570-3X 24W AC180-240V 30°/60°/90°/LR25° L570*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO 3Wires （L，N, PE）
LS6870-RAIL-1136-3X 40W AC180-240V 30°/60°/90°/LR25° L1136*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO 3Wires （L，N, PE）
LS6870-RAIL-1418-3X 40W AC180-240V 30°/60°/90°/LR25° L1418*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO 3Wires （L，N, PE）
LS6870-RAIL-1418-3X 60W AC180-240V 30°/60°/90°/LR25° L1418*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO 3Wires （L，N, PE）

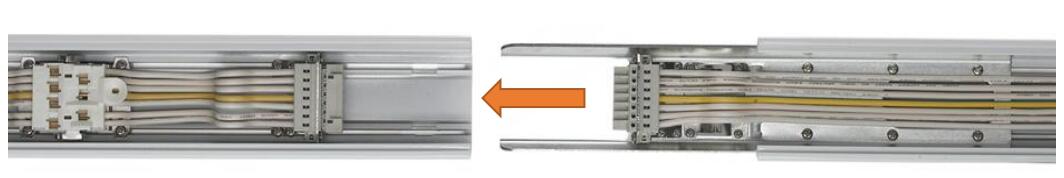

Trunking rail:
The flexble trunking system for challenging lighting demands in all application. With fully compatible modelar kit, it adapts individually to complex lighting tasks. It has an 7-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow‘s needs. All function auch as power supply lighting control are seamlessly integrated into this multifuctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time. The trunking rail is simply a matter of replacing or adding lighting modules, light or optics as required.
