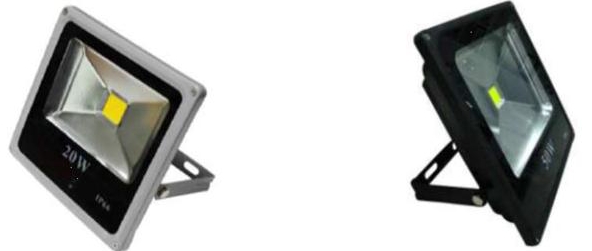

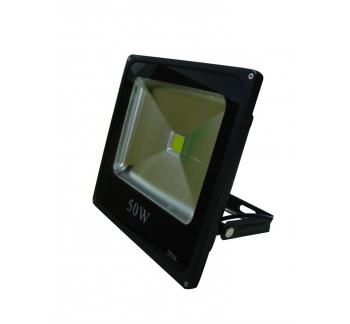

SM Series LED Floodlight
Features：
1. LED : Multi-Chips LED With Epistar or Bridgelux chips.
2. Input Voltage : 85-265VAC,Wide voltage design, available for whole world use.
3. Technique : The LED closely connected to the crust ensures life-span effectively.
4. Driver : Built-in power supply, precision constant current drive LED, and further improve the light stability.
5. Protection Grade : IP66, it can be use outdoor.
6. RGB are available, remote controller.
7. Match with sensor is available.
8. Black and Gray finished cover are both available
10. Widely used for Garden, building decoration as landscape lighting for outdoor, also can be used as main lighting for indoor.

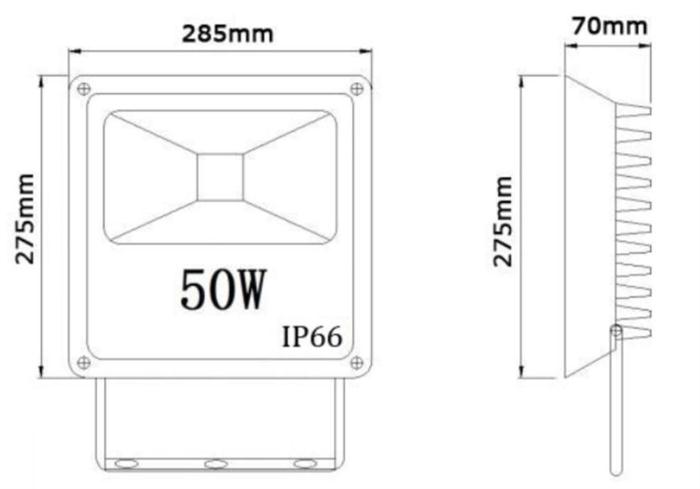

Size：
Parameters：
| Item No. |
PL-FWL-S10-SM |
PL-FWL-S20-SM |
PL-FWL-S30-SM |
PL-FWL-S50-SM |
| Watt |
10w |
20w |
30w |
50w |
| Voltage |
90-305vac |
| Lumen |
900lm |
1800lm |
2700lm |
4500lm |
| Color |
WarmWhite/NatureWhite/White/RGB |
| Beam angle |
120° |
| PF |
>0.95 |
| IP rate |
IP66 |
| RA |
>80 |
| Led Brand |
Epistar/Bridgelux |
| Housing Material |
Aluminium Alloy+Reinforced Glass Cover |
| LED Type |
1*10W COB leds |
1*20W COB leds |
1*30W COB leds |
1*50W COB leds |
Package:
| Item No. |
PL-FWL-S10-SM |
PL-FWL-S20-SM |
PL-FWL-S30-SM |
PL-FWL-S50-SM |
| Watt |
10w |
20w |
30w |
50w |
| Qty per carton |
50pcs |
20pcs |
15pcs |
10pcs |
| carton size |
65x27x33cm |
78x27x22cm |
72*32*27CM |
76x35x32cm |
| Grossweight |
23kg |
19.5kg |
20.2kg |
23kg |
