Led Linear Light

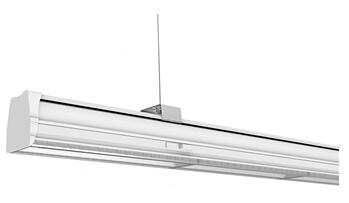

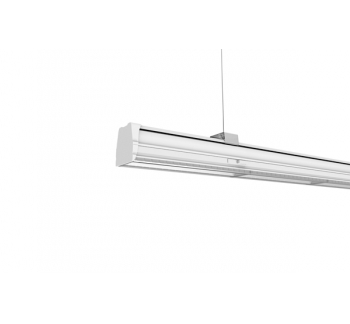

Name：Single piece without connection led linear light
Model：LS6870-24W/40W/60W
Category：Led Linear Light
Product Features：
Led Linear Light
130lm/w, Ra>80, AC180~240V
Beam angle 30D,60D,90D, LR25D are available
0.6M 24W, 1.2M 40W and 1.5M 40W/60W
Description

LED Linear Trunking System


Main Features:
*Low installation cost-everything in one box and installation is tool-less.
*The high light efficiency of 130lm/w makes reduction on energy consumption and additional cost.
*Ra>80.
*CCT: 3,000K/4,000K/5,000K/6,000K.
*A wide range of beam angle optics from 30D to 120D, as well as asymmetric and double asymmetric distribution.
*Emergency versions available.
*Dimming versions available.
*Different length with various power is available.
*X,L and T standard module node connectors with electrical feed-in and feed-out.
*Mounting options: chain suspended, cord suspended, rod suspended or surface mounted.
*Color scheme: White.









Parameter:
MODEL NUMBER POWER Input Voltage LIGHT DISTRIBUTION  Dimension LUMEN  CRI  COLOR
TEMPERATURE		 Dimming  Rails Description
LS6870-575 24W AC180-240V 30°/60°/90°/LR25° L575*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO （单独吊装，不拼接）
LS6870-1141 40W AC180-240V 30°/60°/90°/LR25° L1141*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO （单独吊装，不拼接）
LS6870-1424 40W AC180-240V 30°/60°/90°/LR25° L1424*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO （单独吊装，不拼接）
LS6870-1424 60W AC180-240V 30°/60°/90°/LR25° L1424*W68*H70mm 130lm/w 80Ra 3K/4K/5K/6K NO （单独吊装，不拼接）


Application:
*Commercial
*Industrial
*Warehouse
*Other indoor lighting

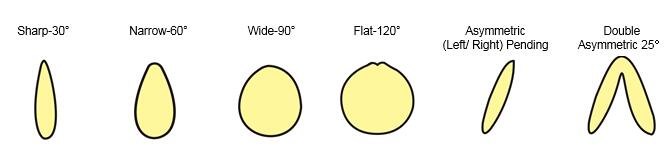

Beam angle performance:

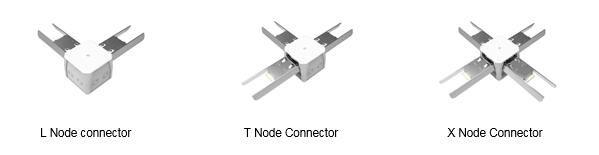

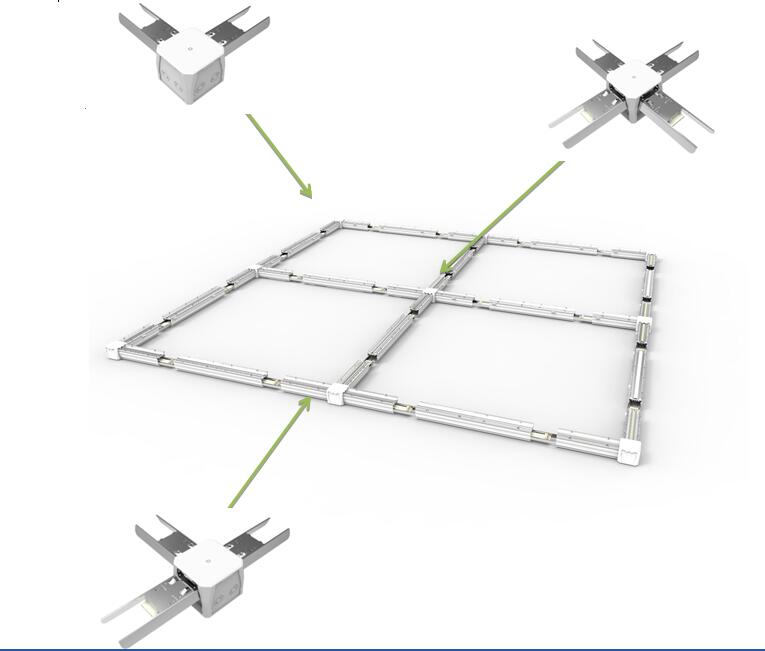

Node connector:

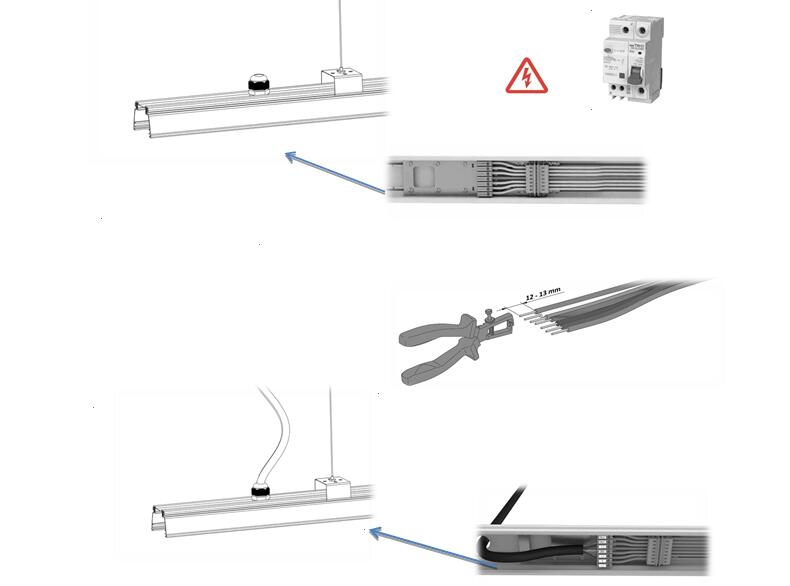

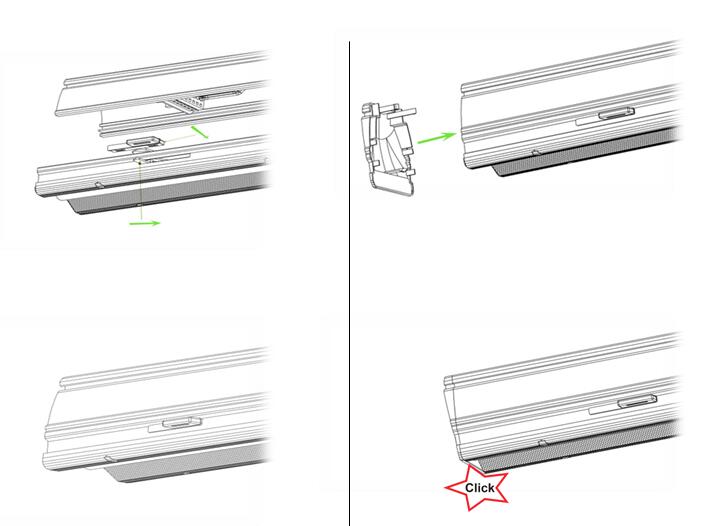

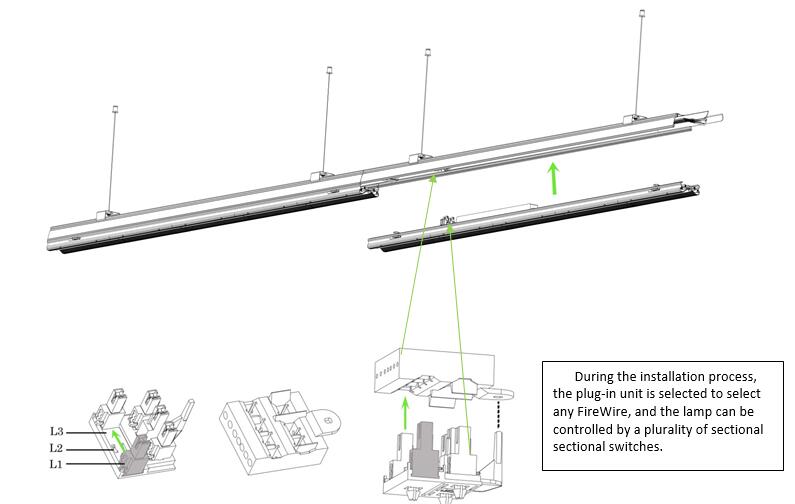

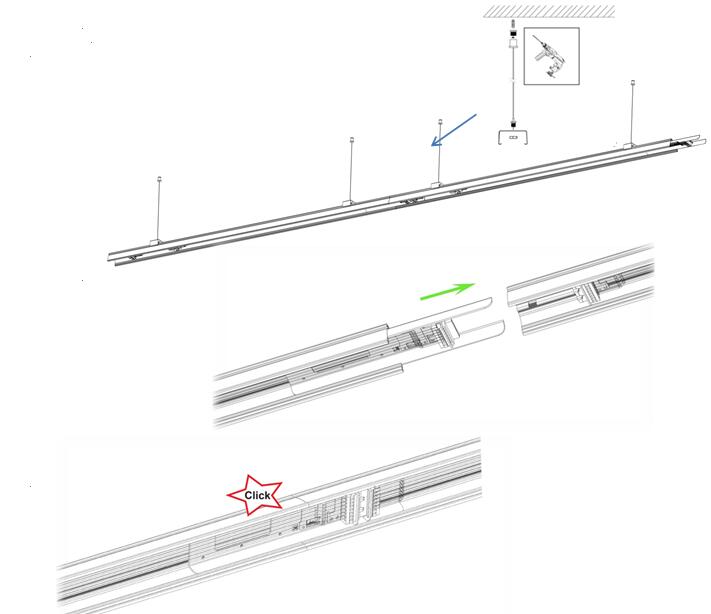

Installation:
