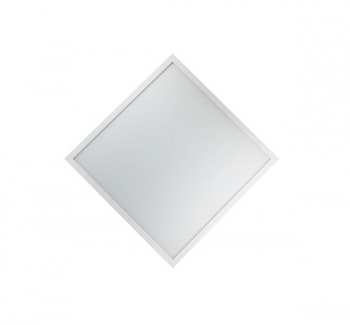

Snowwhite LED Panel
.jpg)
Feature:
1. .ies/.ldt files are available
2. Instant on/ off; No UV/NoFlickering
3. Treated flange back plate to solve the gap problem between two screws with old design
4. Innovative design of connecter safe and reliable user friendly
5. Additional bump to protect LEDs from being hit by LGP
6. Multiple installation methods
7. Ultra slim and light, with thickness only 9mm
8. UGR<19 is available

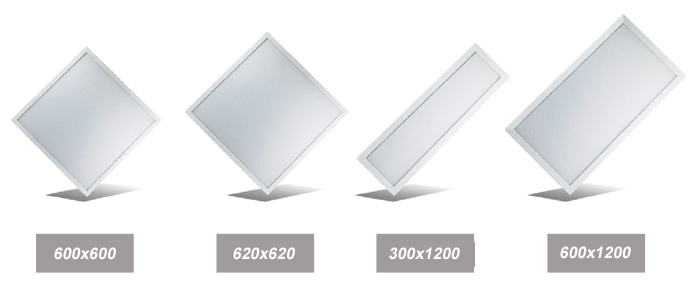

Dimension:
Parameter:
| Item |
Size |
Watt |
Votage |
Lumen |
Ra |
| Luminous efficiency 100lm/w, To use 0.5w 2835smd led |
| PL-P600*600-XX36-A1 |
595*595*9MM |
36W |
220~240VAC |
3816lm |
>80 |
| PL-P620*620-XX36-A1 |
620*620*9MM |
36W |
220~240VAC |
3816lm |
>80 |
| PL-P1200*300-XX36-A1 |
295*1195*9MM |
360W |
220~240VAC |
3816lm |
>80 |
| PL-P1200*600-XX60-A1 |
595*1195*10MM |
60W |
220~240VAC |
6000lm |
>80 |
1.Flickering/No flickering/URG<19 available
2.White frame. XX means color, when order, please confirm correct color
Package:
| Item |
Packing |
Dimension(mm) |
Net weight |
Outer carton size(mm) |
Outer carton G.W |
| 600*600 panel light |
6pcs |
595*595*9 |
2.15 kg |
650*160*650 |
14.0 kg |
| per carton without inner box |
| 620*620 panel light |
6pcs |
620*620*9 |
2.3 kg |
675*160*675 |
15.0 kg |
| per carton without inner box |
| 1200*300 panel light |
6pcs |
1195*295*9 |
2.3 kg |
1250*160*350 |
15.0 kg |
| per carton without inner box |
| 1200*600 panel light |
2pcs |
1195*595*10 |
5.00 kg |
1250*30*650 |
13.0 kg |
| per carton without inner box |

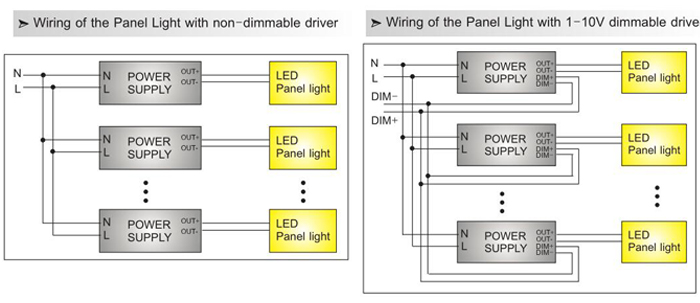

Connection Diagram:
