LED Panel

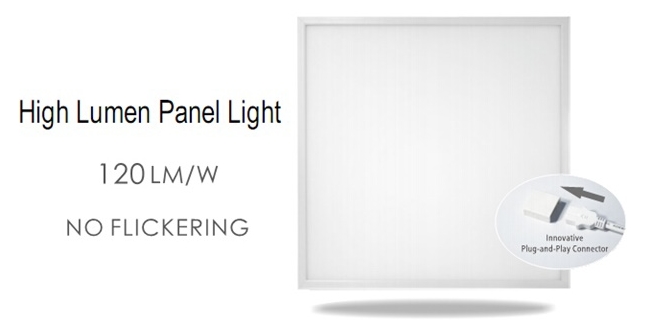

Name:120lm/w LED Panel
Model:P600*600/620*620/1200*300-XX36-H1
Category:LED Panel
Product Features:

Size: 600x600mm, 620x620mm, 300x1200mm, 600x1200mm
120lm/w, TUV listed driver, 220-240vac
No flicking, UGR<19 available
.IES file available

Description

Luminous efficiency 120lm/w,To use 1w 2835smd led Panel

Feature:
1. .ies/.ldt files are available
2. Instant on/ off; No UV, No flickering
3. Treated flange back plate to solve the gap problem between two screws with old design
4. Innovative design of connecter safe and reliable user friendly
5. Additional bump to protect LEDs from being hit by LGP
6. Multiple installation methods
7. Ultra slim and light, with thickness only 11mm
8. UGR<19 version available

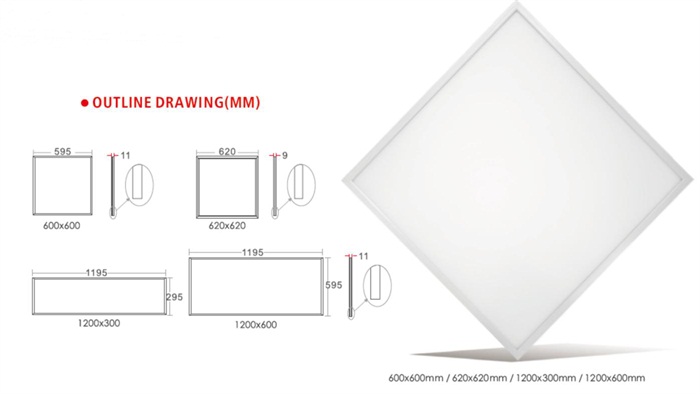

Dimension:


Parameter:

Item Size Watt Votage Lumen Driver
Luminous efficiency 120lm/w,To use 1w 2835smd led
P600*600-XX36-H1 595*595*9mm 36W  220~240VAC 4320lm TUV, CE
P620*620-XX36-H1 620*620*9MM 36W  220~240VAC 4320lm TUV, CE
P1200*300-XX36-H1 295*1195*9MM 36W  220~240VAC 4320lm TUV, CE
P1200*600-XX54-H1 595*1195*10MM 54W  220~240VAC 6480lm TUV, CE
1.Flickering/No flickering/URG<19 available
2.White frame. XX means color, when order, please confirm correct color

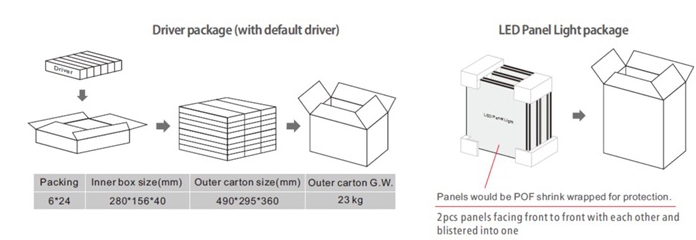

Package:

Item

Packing

Carton size (mm)

Gross Weight

300x300 panel light

10pcs per carton

390*340*430

12.8kg

600x600 panel light

6pcs per carton

720*640*180

23.9kg

620x620 panel light

6pcs per carton

740*665*180

24.5kg

1200x300 panel light

6pcs per carton

1305*340*180

23.7kg

1200x600 panel light

2pcs per carton

1325*640*95

17.2kg



Connection Diagram:
