ECO 36W LED PANEL

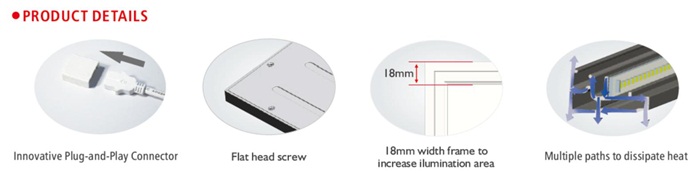

Feature：
1. ies/.ldt files are available
2. Instant on/ off; No UV
3.Treated flange back plate to solve the gap problem between two screws with old design
4. Innovative design of connecter safe and reliable user friendly
5. Additional bump to protect LEDs from being hit by LGP
6. Multiple installation methods
7. Ultra slim and light, with thickness only 9mm

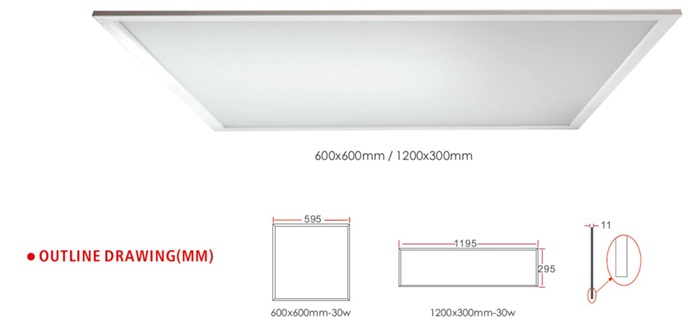

Demension：
Parameter：
| Part number |
Panel size |
Power |
Efficiency |
Lumen |
Ra |
Driver |
Voltage |
Color |
Working Temp |
| P600*600-XX36-ECO |
595*595*9mm |
36W |
90~100lm/w |
3400lm |
>80 |
TUV listed |
220-240vac |
4000k 5000k |
-20~40℃ |

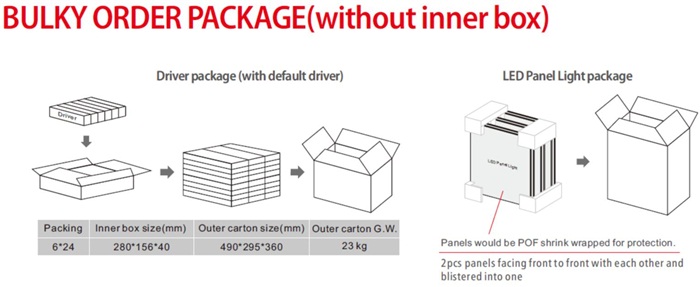

Package：
| Item |
Packing |
Dimension(mm) |
Net weight |
Outer carton size(mm) |
Outer carton G.W |
| 600*600 panel light |
6pcs |
595*595*11 |
2.15 kg |
650*160*650 |
14.0 kg |
| per carton without inner box |
